In this Sensors and Vision edition, we highlight solutions across the full sensing chain. From camera modules and ToF sensing to pressure and proximity solutions, system performance is defined by how data is captured and processed. Selecting the right components early helps balance accuracy, integration, and power requirements.

TOP-electronics supports your design with technology comparison, design-in guidance and component selection.

On behalf of the TOP-team

Arco Snoey, CEO & Founder of TOP-electronics

Your global distribution partner with local technical expertise

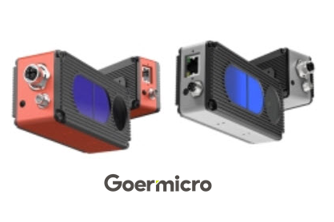

Industrial-grade iToF RGBD camera module, providing high-precision 3D vision - Vzense - Goermicro

Industrial-grade 3D ToF camera providing high-precision 3D vision solutions based on advanced optical design and depth perception algorithms.

Key capabilities & technical highlights

- High ranging accuracy: ±1 mm precision (typical)
- Operational range / dynamic span: Up to ~5 m
- Dense point‑cloud output: 640×480 @ 30 fps
- IP67 protection (for selected models) and broad temperature tolerance
- Support for industrial protocols, SDKs, and secondary development

Applications:

- Enhancing Autonomous Navigation

- Pallet Detection & Autonomous Forklift Operation

- Smart Material Handling & Industrial Automation

- People counting with privacy protection

Flexible camera modules for embedded vision designs

Selecting the right camera module goes beyond the sensor. Interface, optics, field of view, mechanical fit, platform support, and image tuning all need to align to ensure smooth integration.

TOP-electronics supports OEMs with custom embedded camera modules ranging from 0.3 MP to 200 MP, with interfaces including:

- USB
- MIPI CSI-2
- GMSL
- DVP
- SPI

For applications such as industrial inspection, robotics, kiosks, access control, and smart retail, this flexibility allows engineers to match the imaging system to the application.

Configuration options

- Rolling or global shutter
- HDR support
- Low-light optimization
- Monochrome sensors
- IR-pass / IR-cut variants

These options help align optics, interface, and platform compatibility early in the design process.

Thermal imaging for embedded sensing

Meridian Innovation develops advanced LWIR thermal imaging solutions based on its patented SenXor™ CMOS technology. Designed as low cost thermal modules for embedded and high-volume applications, it enables engineers to easily integrate thermal awareness into compact systems.

Rather than relying on visible light, SenXor modules detect long-wave infrared radiation (8–14 μm), enabling:

- Heat pattern detection
- Temperature mapping
- Thermal event monitoring

This allows systems to detect temperature variations independent of ambient lighting conditions, making it suitable for both day and night operation and environments where visibility is limited.

Typical use cases

- Predictive maintenance
- Overheating detection
- Presence & occupancy sensing
- Condition monitoring
- Energy optimization

Thermal sensing is well suited for applications requiring non-contact measurement, lighting-independent operation, and compact integration.

MI0802x Cougar

Resolutions: 80x62
HFOV options: 45°, 90°, 105°
FPS: 25
Operating Temp: -20/+85°C
Measure Temp: -40/+400°C
Max dimensions: 9x9x8.2mm
Interface: SPI
Voltage: 3.3V
Power Consumption: <50mW

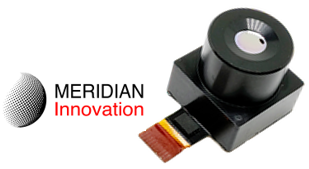

MI1602x Panther

Resolutions: 160x120
HFOV options: 45°, 88°
FPS: 25
Operating Temp: -20/+85°C
Measure Temp: -40/+400°C
Max dimensions: 13x13x13.7mm
Interface: SPI
Voltage: 3.3V
Power Consumption: <78mW
